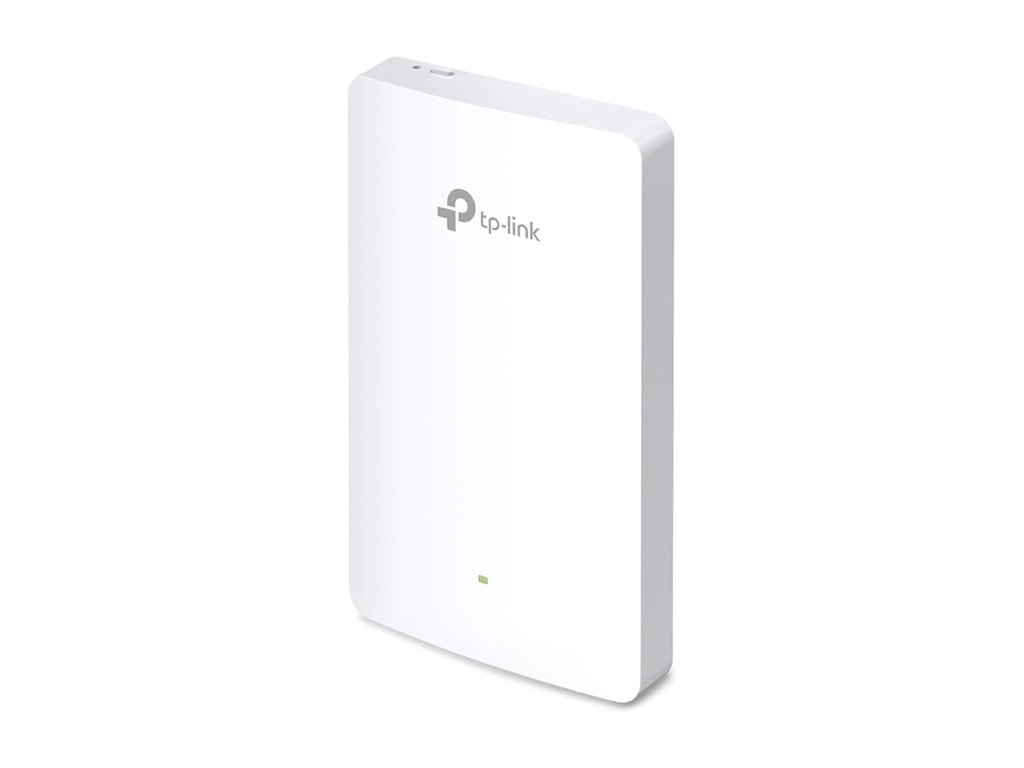

TP-Link EAP225-Wall AP
| Promotion | : | |
| Coupon | : | # |
| Code | : | #EAP225 |
| Name | : | TP-Link EAP225-Wall AP |
| Category | : | TP link /Cisco/MikroTik , NETWORK COMPONENTS |
| Price | : | $xx |
| CPU | : | |
| RAM | : | |
| Storage | : | |
| VGA | : | |
| Screen | : | |
| Keylight | : | |
| Color | : | |
| Type | : | |
| Remark | : | |
| Order | : | Click here |
- TP-Link EAP225-Wall Omada Wireless Wall-Plate Access Point
- Dimensions (WxDxH):
- (143 × 86 × 19.7)mm
- Interface:
- 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD)
- 2 × 10/100Mbps Ethernet Port
- 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.)
- Physical security lock:
- Yes
- Button:
- Reset
- Power supply:
- 802.3af or 802.3at PoE
- Power consumption:
- 9 watts or 25.5 watts including PoE Out
- Antenna:
- 2 Dual-Band Antennas
- 2.4GHz: 2 × 3dBi
- 5GHz: 2 × 4dBi
- Mounting:
- Wall Plate Mounting
- Wireless client capacity:
- 200+*
- Wireless standards:
- IEEE 802.11n/g/b/ac
- Frequency:
- 2.4GHz and 5GHz
- Signal rate:
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps
- Wireless functions:
- 16 SSIDs（Up to 8 SSIDs on each band）
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,
- WPA-PSK / WPA2-PSK
- Transmission power:
- 21dBm max. (2.4 GHz)
- 21 dBm max. (5 GHz)
