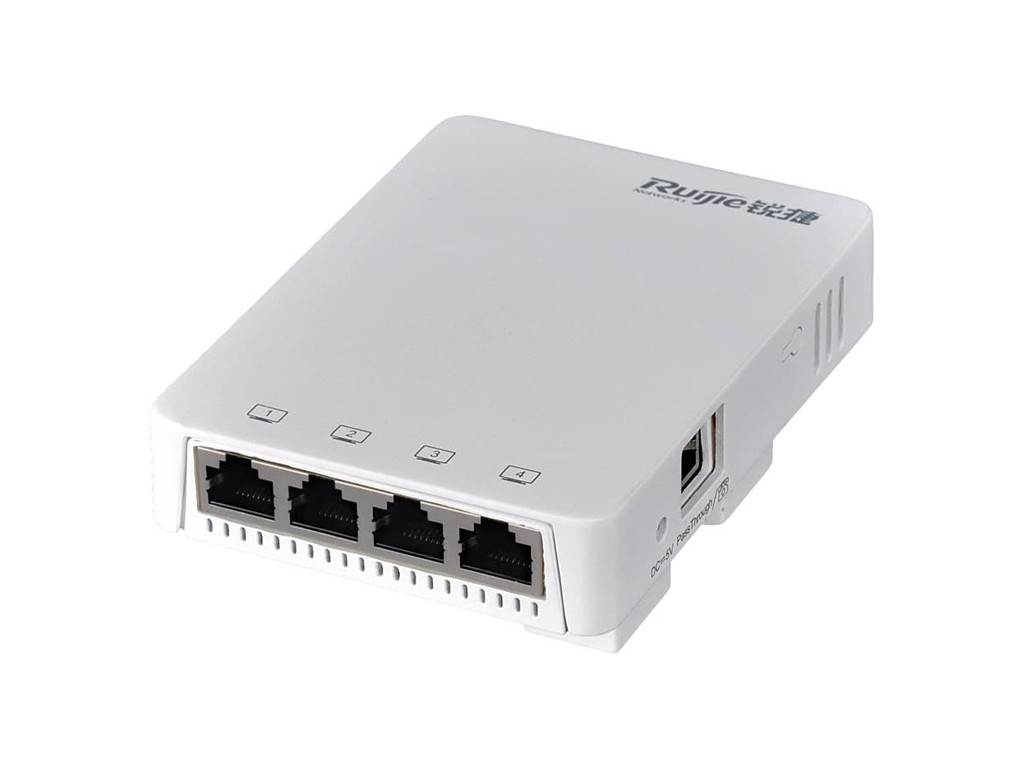

Ruijie RG-AP130(L) Wall AP
| Promotion | : | |
| Coupon | : | # |
| Code | : | #RG-AP130(L) |
| Name | : | Ruijie RG-AP130(L) Wall AP |
| Category | : | Modem , NETWORK COMPONENTS |
| Price | : | $143 |
| CPU | : | |
| RAM | : | |
| Storage | : | |
| VGA | : | |
| Screen | : | |
| Keylight | : | |
| Color | : | |
| Type | : | |
| Remark | : | |
| Order | : | Click here |
- Ruijie RG-AP130(L) Wall Access point
- Dimensions (WxDxH):
- (116×86×42)mm
- Target deployments:
- For wireless deployment in hotels, offices, residential buildings
- Radio:
- Concurrent dual-band dual-radio
- Protocol:
- 802.11a/b/g/n/ac
- Operating bands:
- 2.4GHz and 5GHz
- Antenna:
- Built-in omnidirectional antenna (Base gain 3.5dBi) 2×2 MIMO
- Antenna gain:
- 3dBi
- Max throughput:
- 300Mbps@2.4GHz
- 867Mbps@5GHz
- 1.167Gbps per AP
- Modulation:
- OFDM: BPSK@6/9Mbps
- QPSK@12/18Mbps
- 16-QAM@24Mbps
- 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps
- DQPSK@2Mbps
- and CCK@5.5/11Mbps
- MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
- Receiver sensitivity:
- 11b/g: -94dBm(1Mbps), -74dBm(54Mbps)
- 11a: -90dBm(6Mbps), -74dBm(54Mbps)
- 11n HT20: -72dBm(MCS7, -68dBm)MCS15
- 11ac HT20: -90dBm(MCS0), -65dBm(MCS8)
- 11ac HT40: -85dBm(MCS0), -60dBm(MCS9)
- 11ac HT80: -82dBm(MCS0), -58dBm(MCS9)
- Maximum transmit power:
- ≤100mW (20dBm, transmit power of the RF card only)
- IP rating:
- IP41
- Service port:
- Front: 4 10/100M Ethernet ports
- Side: 1 RJ-45 pass-through port (RJ-11 combo)
- Rear: 1 10/100/1000M uplink port 1 RJ-45 pass-through port (RJ-11 combo)
- Management port:
- 1 console port (Micro USB)
- Power supply:
- PoE (802.3af)
- Power consumption:
- <8W
