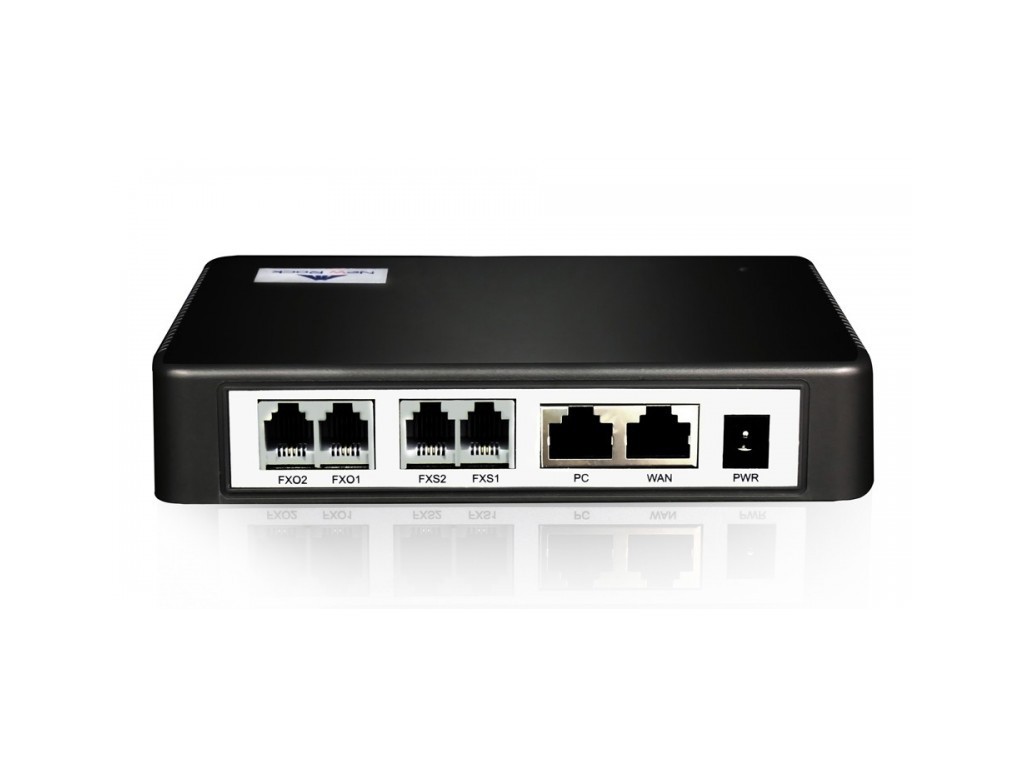

New Rock HX440G Gateway
| Promotion | : | |
| Coupon | : | # |
| Code | : | #HX440G |
| Name | : | New Rock HX440G Gateway |
| Category | : | Synology, DESKTOP/SERVER/LCD |
| Price | : | $XXX |
| CPU | : | |
| RAM | : | |
| Storage | : | |
| VGA | : | |
| Screen | : | |
| Keylight | : | |
| Color | : | |
| Type | : | |
| Remark | : | |
| Order | : | Click here |
- New Rock HX440G Gateway .cc
- Hardware:
- FXO ports : 4
- CPU : Dual core, 880MHz
- Ram : 256MB
- Flash : 16MB
- Power Consumption : 6W
- Power : 12VDC/1.5A
- Mounting : Desktop
-
Protocols:
-
Call Control : SIP/UDP and SIP/TCP(RFC3261),IMS(3GPP), MGCP(RFC3435)
-
Network : SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS( A/SRV record), STUN
-
Media processing:
-
Caller ID : Bellcore/Telcordia, ETSI, BT, DTMF, G.711(a/u), G.729a, G.722, G.722.2* Roadmap feature
-
DTMF : in – band audio, RFC2833, SIP – INFO
-
Hook – flash : Local Processing, RFC2833, SIP – INFO
-
Fax over IP :
-
T.38, G.711 pass through
-
T.38 compliant Group 3 Fax
-
Relay
-
Maximum frame rate of 33,600bps(T.38)
-
Disconnect modes : Polarity reversals, Busy tone Detection, Loop current
-
QoS : DiffServ, TOS, 802.1P/Q VLAN tagging
-
Voice – quality Enhancement : Echo cancellation (G.168 – 2004), Jitter Buffer, Silence suppression(VAD, CNG), PLC
-
-
Voice:
-
Call transfer : Blind transfer, Consultative transfer
-
Call forward : call forward all, call forward no answer, call forward busy
-
Call recording storage : remote recording server for storage
-
Call settings : routing based on the caller or the callee number , Digit map, 3-way calling, Speed dialling, Do not disturb, call forking, color ring back tones, Hunt group, Ring cadence, Message Waiting Indicator(MWI)
-
Security:
-
Protocol : HTTPS, TLS, SSH, SRTP
-
Encryption : Encrypted password/PIN
-
Intrusion Prevention : Brute force login protection, Access list, Firewall, SIP – allowed IP addresses, Alarm and notification
-
VLAN : Auto discovery via DHCP, manual configuration
-
VPN client : L2TP, OpenVPN
-
High availability:
-
Redundancy : primary – standby, Active – Standby, Load Balancing
-
PSTN failover : Power failure, Network failure
-
Provisioning, administration & maintanence:
-
Device Management : New Rock Unified Management System, (TR – 069, TR – 104 and TR – 106), SNMP
-
Remote Access over TCP : New Rock Cloud
-
Auto Provisioning : Download configuration file via TFTP/FTP/HTTP/HTTPS, Obtaining ACS address via DHCP option 66 or redirection
-
Log management : 8 – level logs, Syslog
-
Data Capture : Port capture , Packet capture
-
Status and Statistic : Call status and history, Device status monitoring and statistics collection
-
Upgrade : Firmware upgrade via Web GUI or Auto provisioning
-
Add– On software:
-
Finder : obtains IP addresses of devices in LAN environment
-
Telegreeting : Formats pre – prepared IVR audio files or uploads them into a device
-
Recording agent : receives recording streams in PCM and converts them into MP3 format. Includes management functions such as search, play, delete and backup.
-
Dimensions & weight:
-
H*W*D : 30 * 150 * 109(mm)
-
Net Weight : 0.3kg
